A34/4L360 V-Belt
A34/4L360 V-Belt
Couldn't load pickup availability

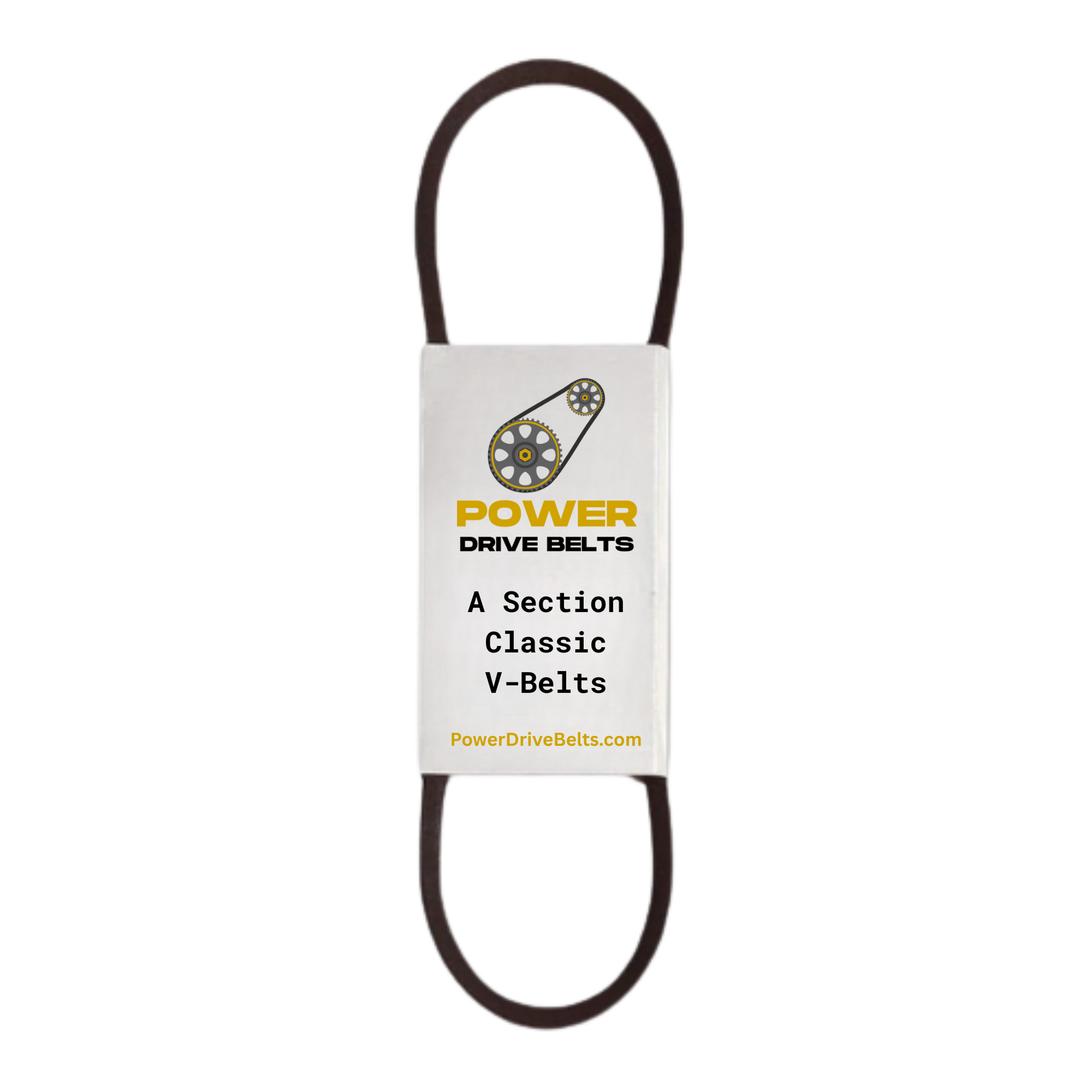

The A34 also known as 4L360 V Belt is a high quality classic V belt designed for compact belt driven equipment that requires reliable power transfer and long service life. Perfect for tight pulley systems this belt provides smooth and efficient operation under frequent use.
Belt Specifications
Type: A Section Classic V Belt
Top Width: 0.5 inches
Depth: 0.3125 inches
Outside Length: 36.0 inches
Cross Reference Part Numbers
A34
4L360
Dayco L436
Gates 3604
Carlisle A34
Pix A34
D&D A34
MBL A34
Bestorq A34
Murray 37X36
Applications
Commonly used in walk behind mowers snow blowers small tillers and other residential or light commercial equipment
Key Features
Resists oil heat and cracking in harsh conditions
Performs well in compact pulley arrangements
Provides quiet and stable operation for extended use
Share
Collapsible content
Replaces These Part Numbers
This part is compatible with or replaces the following OEM and aftermarket part numbers:
Belt Size
Installation & Technical Notes
To ensure optimal performance and longevity, install the v belt with proper tension as specified by the equipment manufacturer. Avoid overtightening, which can cause premature bearing wear and belt stretching.
Before installation, inspect pulleys for wear, misalignment, or debris buildup.
Do not use belt dressings, sprays, or lubricants as these can degrade the fabric wrap and shorten belt life. For best results, replace belts in matched pairs when applicable and re-tension after the first few hours of operation
