A32.5/4L345 V-Belt
A32.5/4L345 V-Belt
Couldn't load pickup availability

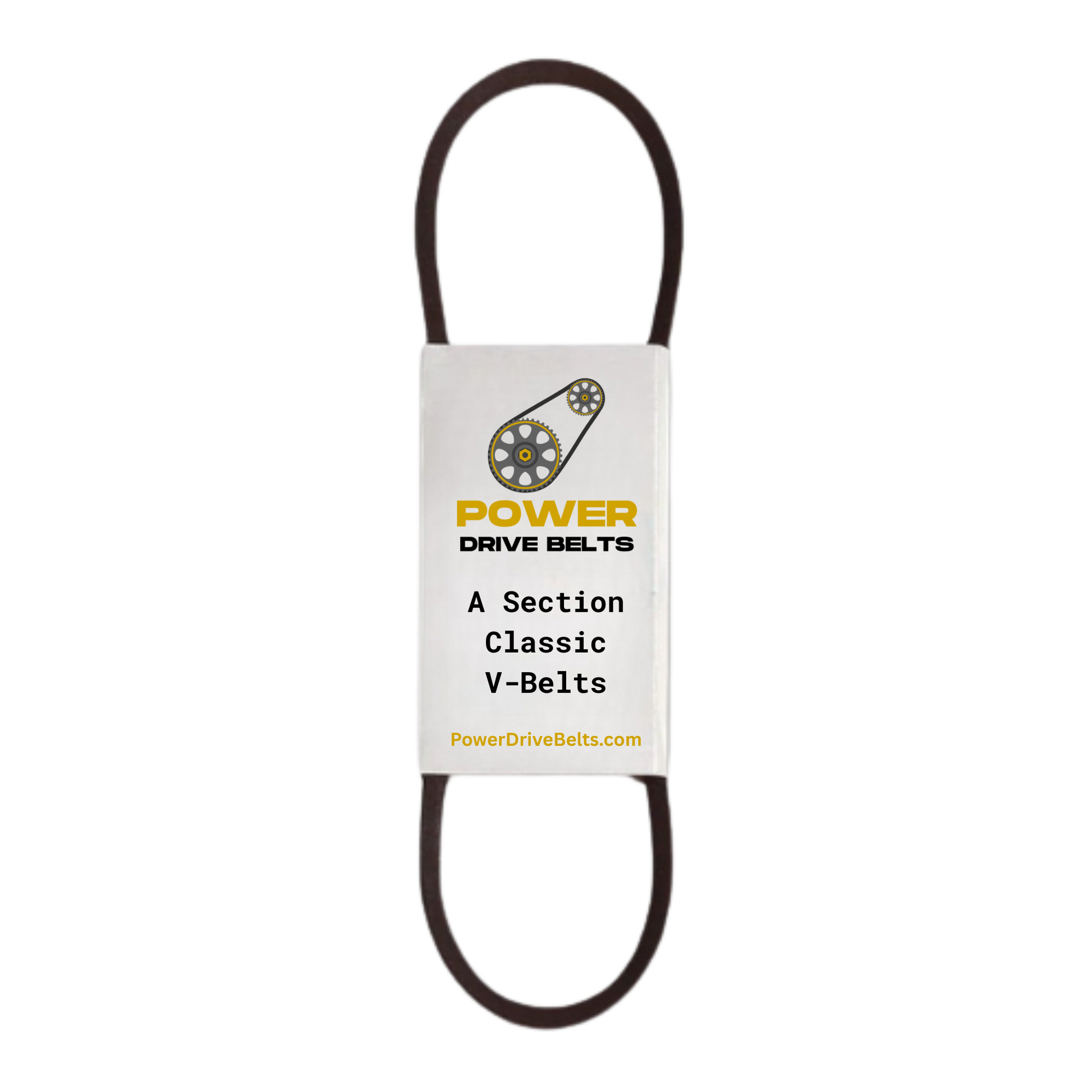

The A32.5 also known as 4L345 V Belt is a classic wrapped V belt engineered for compact machinery that requires precise fit and reliable performance. Its intermediate length provides a solution for drive systems where standard whole number sizes do not align perfectly with pulley spacing.
Belt Specifications
Type: A Section Classic V Belt
Top Width: 0.5 inches
Depth: 0.3125 inches
Outside Length: 34.5 inches
Cross Reference Part Numbers
A32.5
4L345
Dayco L4345
Gates 3454
Carlisle A32.5
Pix A32.5
D&D A32.5
MBL A32.5
Bestorq A32.5
Murray 37X345
Applications
Used in lawn and garden equipment compact drive systems snow blowers and belt driven tools requiring an in between size
Key Features
Provides exact fit for tighter pulley alignment
Heat oil and abrasion resistant for extended service life
Smooth and stable operation in small drive configurations
Share
Collapsible content
Replaces These Part Numbers
This part is compatible with or replaces the following OEM and aftermarket part numbers:
Belt Size
Installation & Technical Notes
To ensure optimal performance and longevity, install the v belt with proper tension as specified by the equipment manufacturer. Avoid overtightening, which can cause premature bearing wear and belt stretching.
Before installation, inspect pulleys for wear, misalignment, or debris buildup.
Do not use belt dressings, sprays, or lubricants as these can degrade the fabric wrap and shorten belt life. For best results, replace belts in matched pairs when applicable and re-tension after the first few hours of operation
