Aftermarket

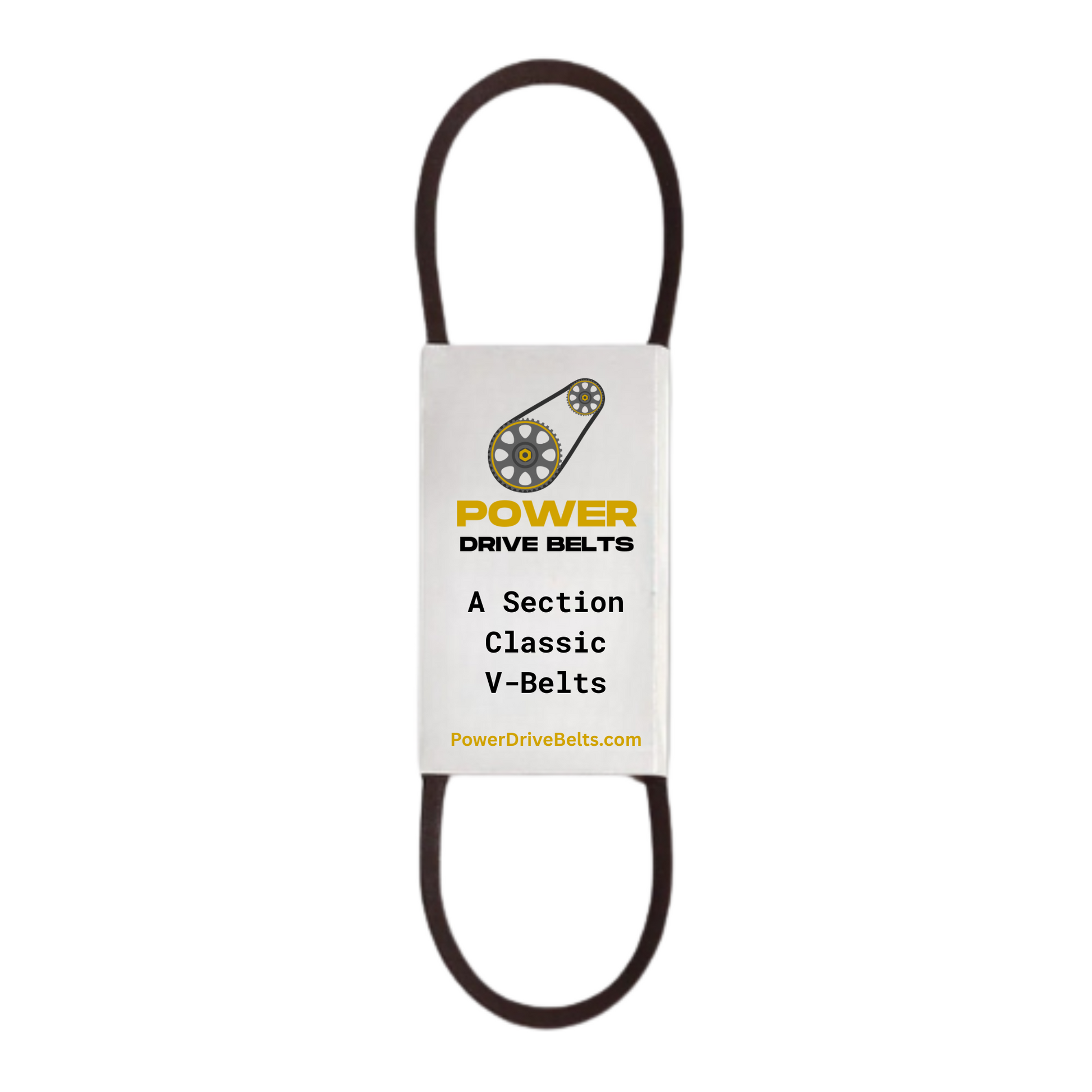

A24/4L260 V-Belt
A24/4L260 V-Belt
Couldn't load pickup availability
The A24 also known as 4L260 V Belt is a classic wrapped V belt designed for small machinery and power equipment where a compact and efficient drive system is required. It delivers smooth operation and long belt life even under frequent use in tight installations.
Belt Specifications
Type: A Section Classic V Belt
Top Width: 0.5 inches
Depth: 0.3125 inches
Outside Length: 26.0 inches
Cross Reference Part Numbers
A24
4L260
Dayco L426
Gates 2604
Carlisle A24
Pix A24
D&D A24
MBL A24
Bestorq A24
Murray 37X26
Applications
Ideal for walk behind mowers snow blowers compact tillers and other small belt driven machines
Key Features
Resistant to oil heat and cracking for extended service life
Performs reliably in small pulley systems
Delivers quiet operation and stable tension under load
Share
Collapsible content
Replaces These Part Numbers
This part is compatible with or replaces the following OEM and aftermarket part numbers:
Belt Size
Installation & Technical Notes
To ensure optimal performance and longevity, install the v belt with proper tension as specified by the equipment manufacturer. Avoid overtightening, which can cause premature bearing wear and belt stretching.
Before installation, inspect pulleys for wear, misalignment, or debris buildup.
Do not use belt dressings, sprays, or lubricants as these can degrade the fabric wrap and shorten belt life. For best results, replace belts in matched pairs when applicable and re-tension after the first few hours of operation
