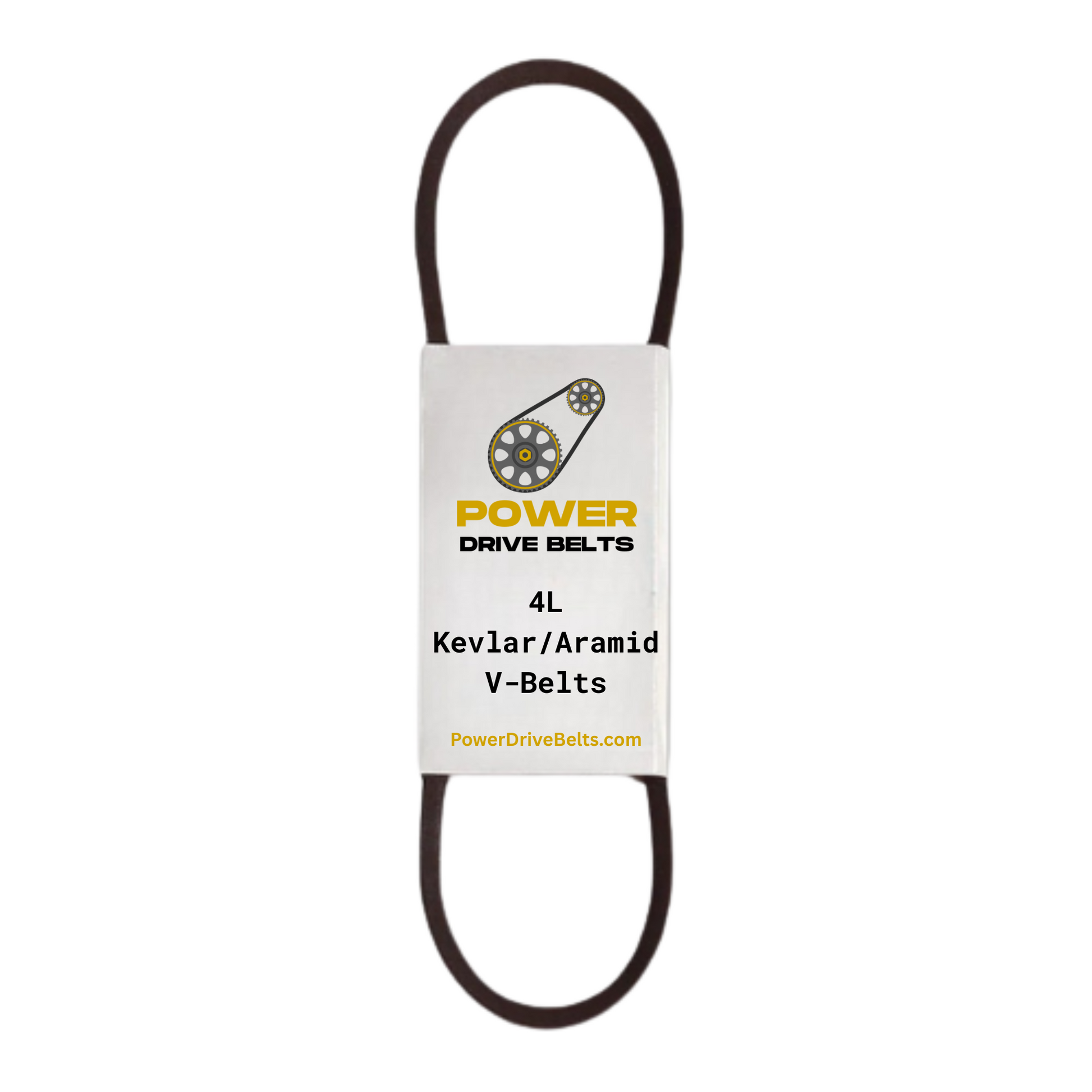

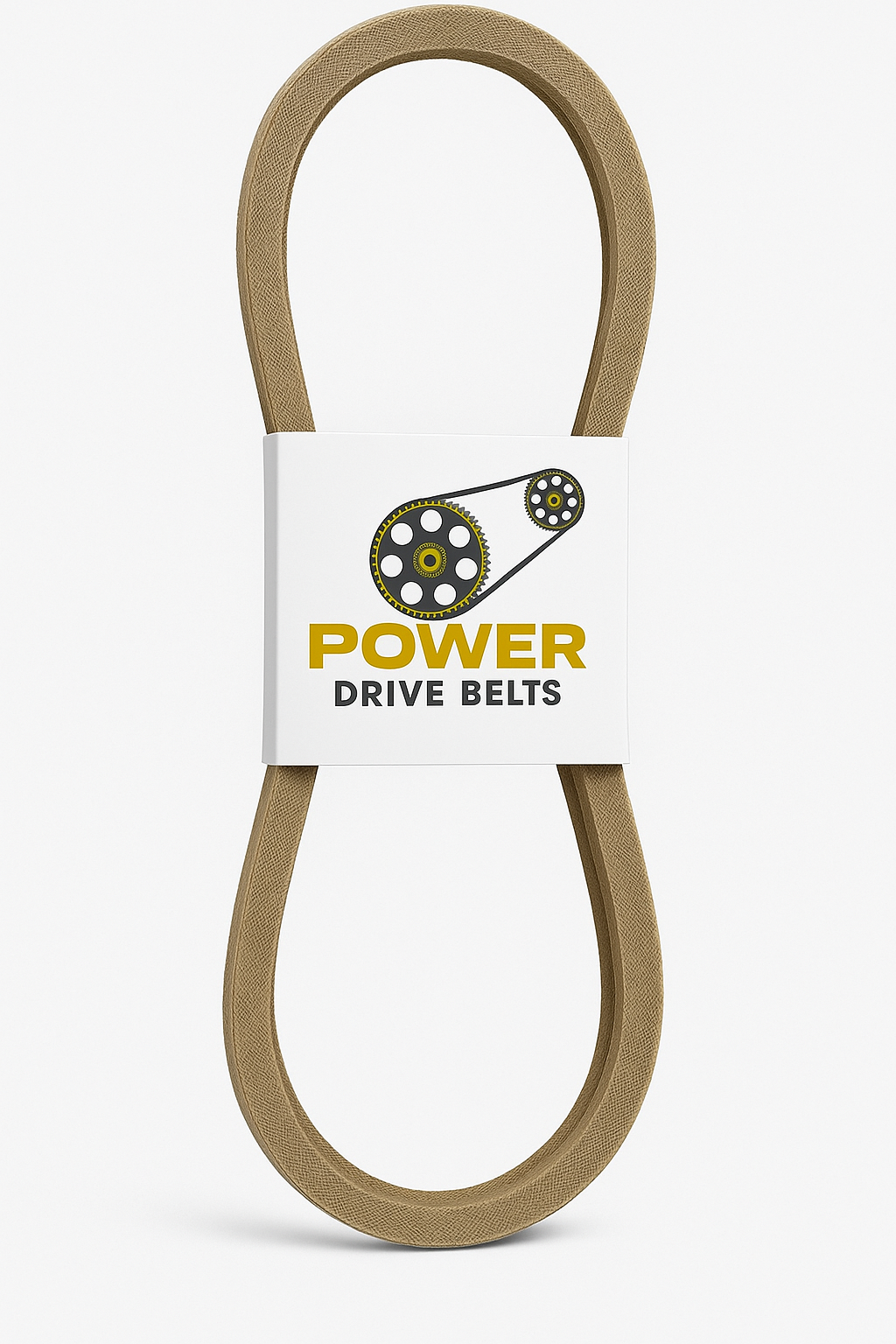

A20K 4LK220 V-Belt

The A20K also known as 4LK220 Kevlar V Belt is a compact heavy duty V belt reinforced with aramid fiber cords for superior strength and minimal stretch. Designed for small equipment and clutching applications this belt performs reliably in high tension and shock load environments.

Belt Specifications
Type: A Section Kevlar V Belt
Top Width: 0.5 inches
Depth: 0.3125 inches
Outside Length: 22.0 inches
Effective Length: 20.0 inches

Cross Reference Part Numbers
A20K
4LK220
Dayco L420K
Gates 6820
Carlisle A20K
Pix A20K
D&D A20K
MBL A20K
Bestorq A20K

Applications
Used in walk behind mowers snow throwers garden tillers and other compact equipment requiring high durability and non stretching belts

Key Features
Kevlar cord construction eliminates stretch and improves shock load resistance
Reliable performance in tight pulley systems and frequent clutching cycles
Engineered for long life under continuous load and extreme conditions
